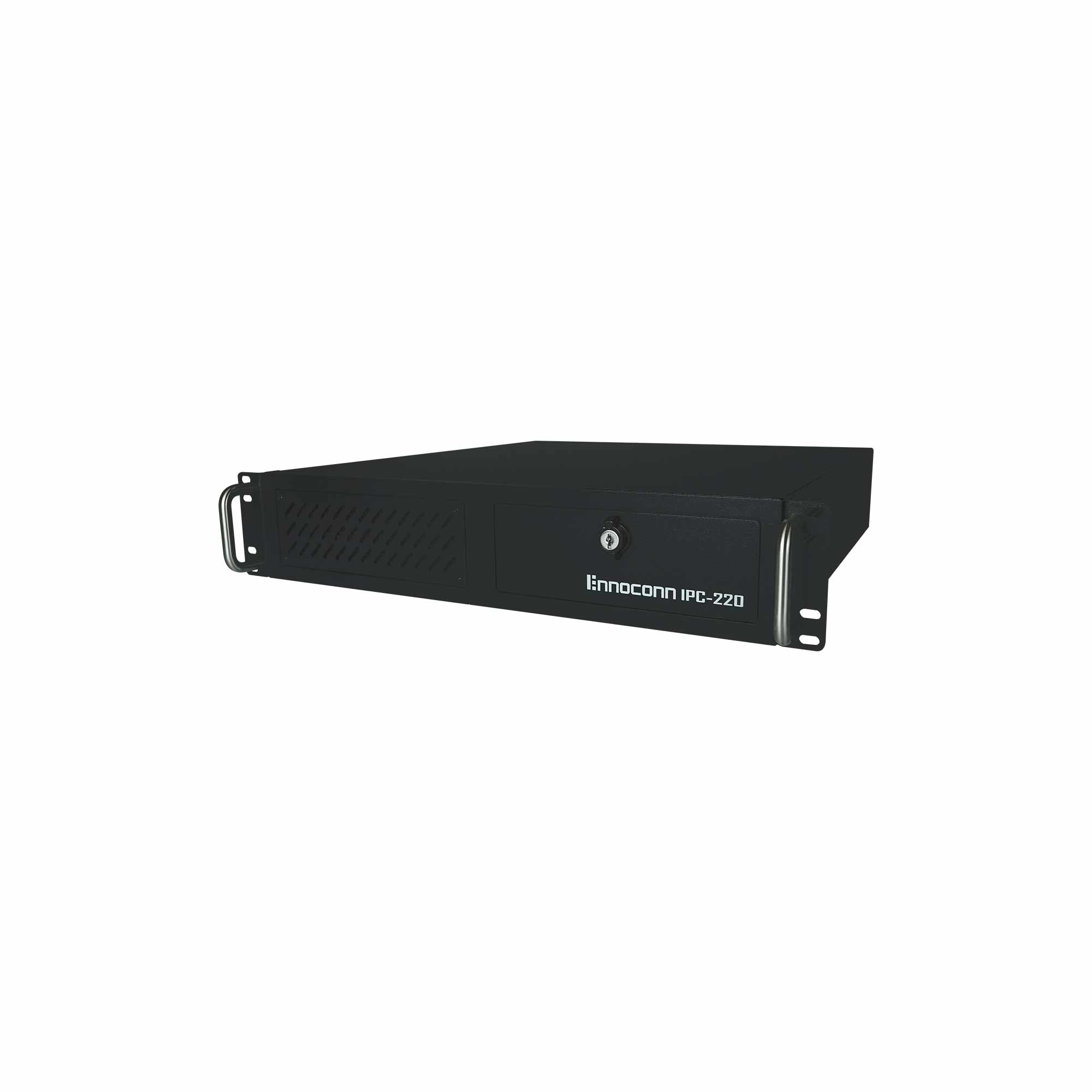

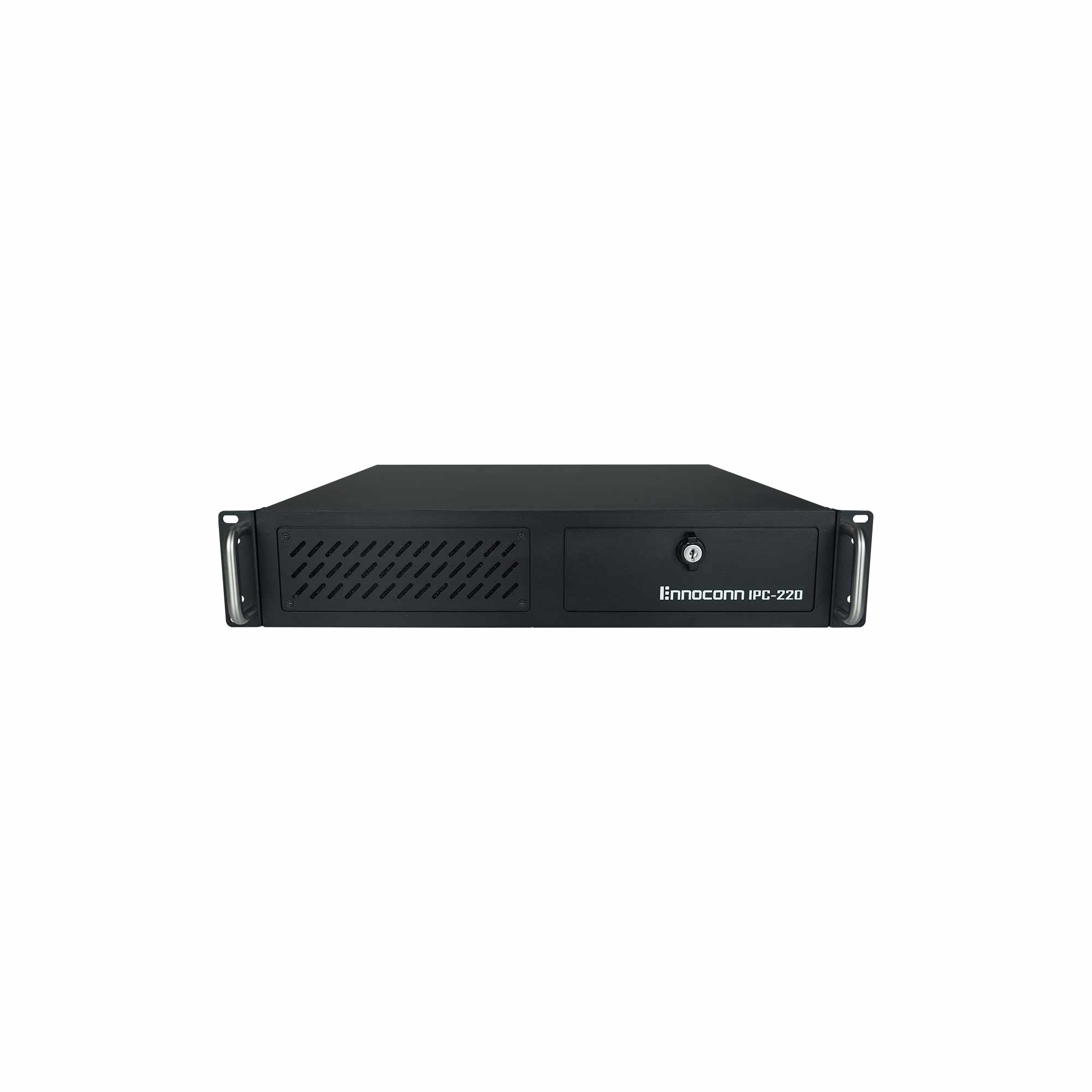

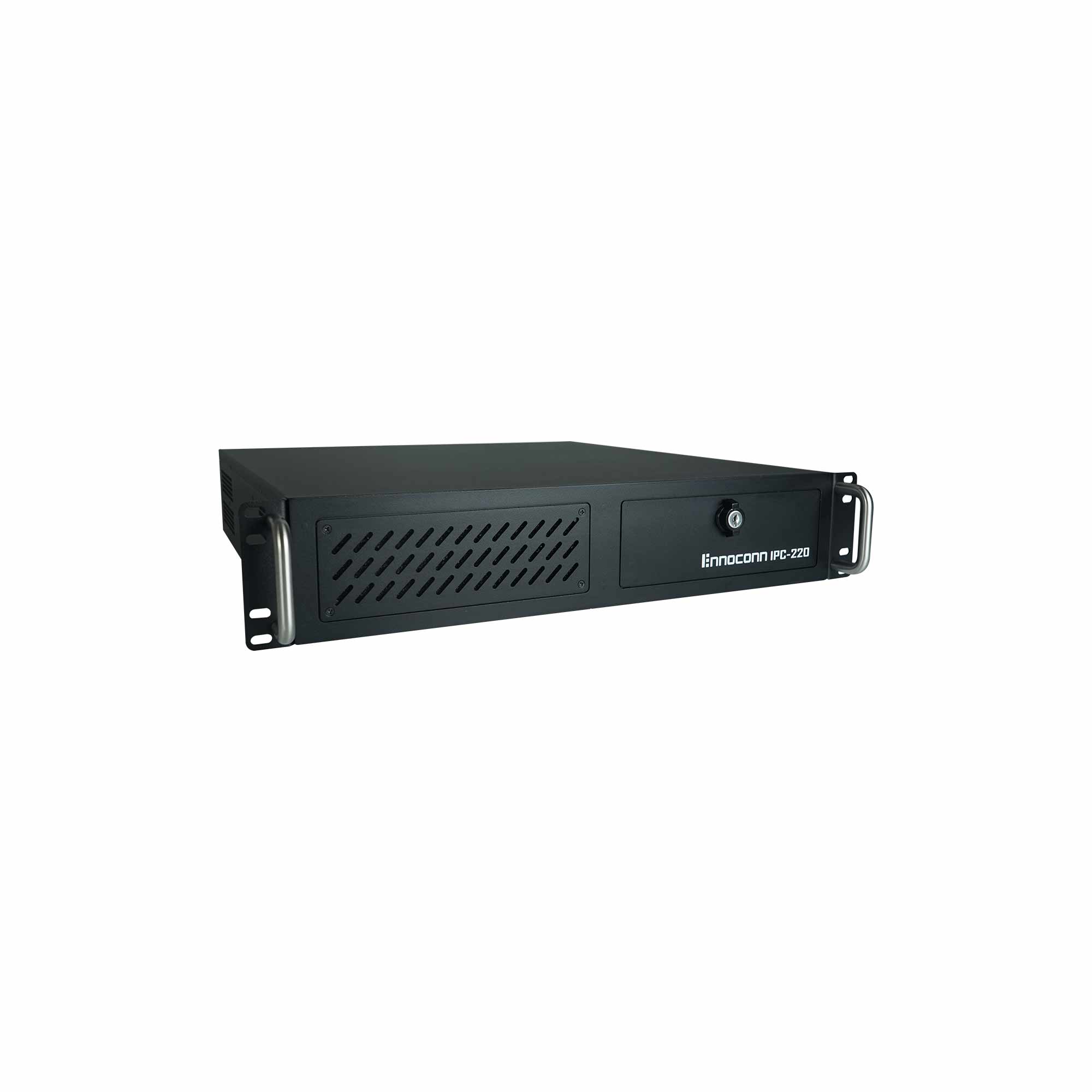

2U工控機 CEFS-RA22-H81A-2U

Intel^?4代酷睿 i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到95W
采用H81芯片組
支持雙千兆網口
支持VGA、DVI雙屏異顯
內置PCI, PCIe插槽，支持多種模塊擴展
抗震動磁盤架設計，可支持2個3.5"HDD,1個2.5"SSD硬盤
前部可訪問 USB接口，更易于數據傳輸
海岸線上的USB端口支持Ennoconn USB SR Pro技術

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

2U, Intel? 4th Gen. Core ? i3/i5/i7, Pentium?, Celeron? processor, LGA1150 Socket, TDP up to 95W

系統 System

處理器 Processor	Intel^? 4th Gen. Core ? i3/i5/i7, Pentium^?, Celeron^? processor, LGA1150 Socket, TDP up to 95W
芯片組 Chipset	Intel^? H81
內存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR3 (1.5V) 1333/1600MHz, up to 16GB
圖形 Graphics	Intel^? HD Graphics, dual display
存儲 Storage	2 x SATA2.0, 1 x SATA3.0, 1 x M.2 (SATA3.0 signal) 2242/2280
操作系統 OS	Windows7/8/10, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
信賴平臺模塊 TPM	Nuvoton TPM1.2(optional, need MOQ)

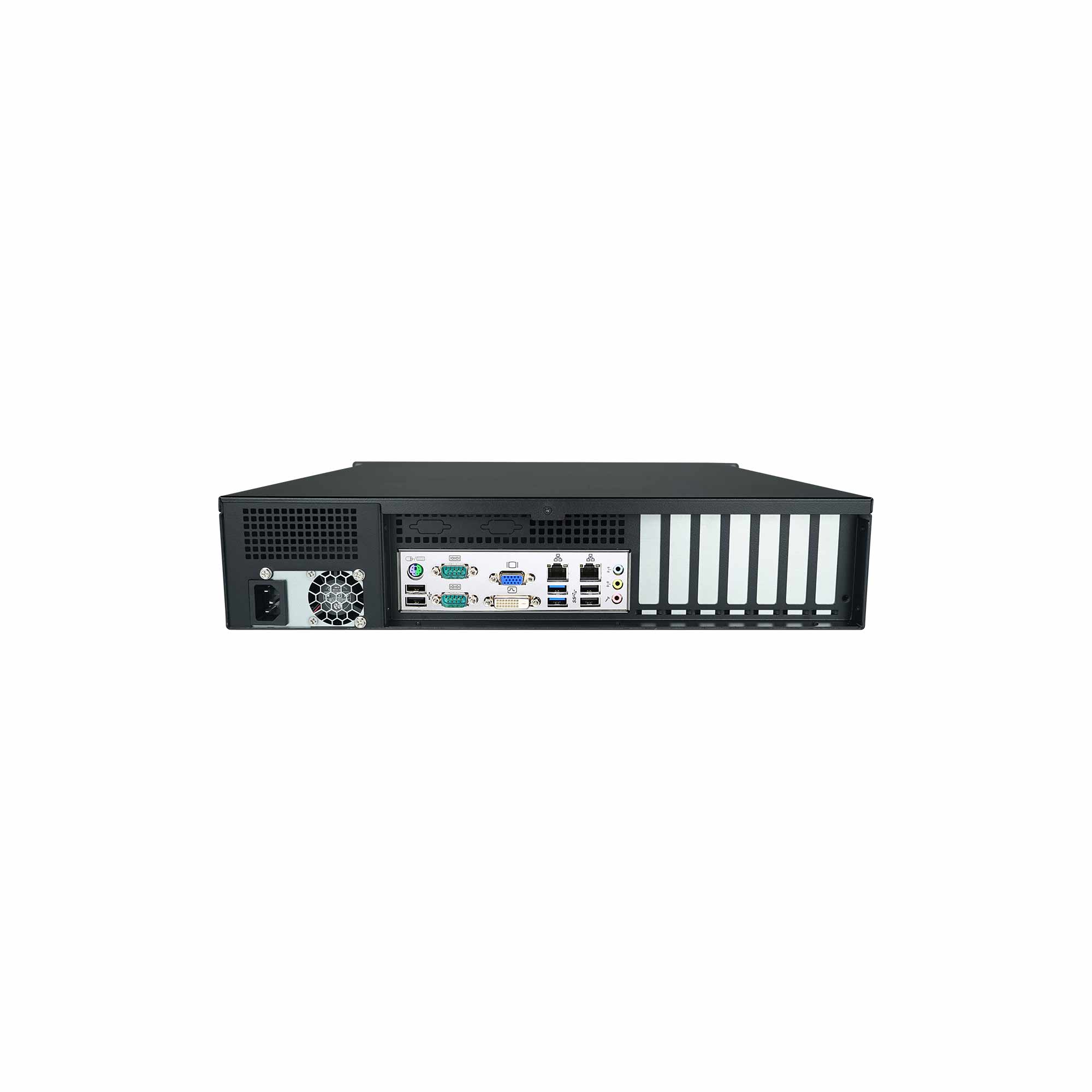

外部接口 External I/O

網口 Ethernet	2 x RJ45 Intel i211AT GbE (10/100/1000 Mbps)
顯示 Video	1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz
串口 COM	2 x RS232/422/485 (with auto flow control)
USB	6 x USB 2.0, 2 x USB 3.0(Support Ennoconn USB SR Pro Technology)
PS/2	1 x PS/2(Mini-DIN-6)
按鈕 Button	1 x Power Button, 1 x Reset Button
指示燈 LED	1 x Power LED, 1 x HDD LED

內部接口 Internal I/O

擴展接口 Expansion	1 x PCIe X16, 2 x PCIe X4(X 1 Link), 4 x PCI
風扇 FAN	1 x CPU Fan, 2 x System Fan
USB	2 x USB2.0 (Type-A share USB signal with one USB2.0)
GPIO	1 x 16 bit GPIO
串口 COM	2 x RS232/485, 2 x RS232

環境 Environmental

操作溫度 Operating Temp.	0℃ ~ 40℃
存儲溫度Storage Temp.	-20℃ ~ 60℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10G @ 11ms operation

電源 Power
